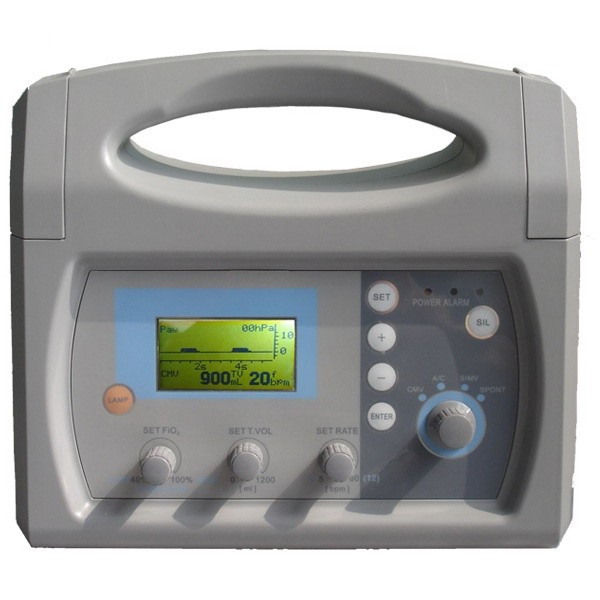

AR-100C Portable Ventilator With Compressor

AR-100C Portable Ventilator With Compressor

Technical Specifications

Physical Specifications

Dimension: Width 300mm, Depth 160mm, Height 230mm, Weight 3Kg

Carrying Packages Dimension: Width 460mm, Depth 200mm, Height 400mm, Weight 7Kg

Packaging Dimension: Width 620mm, Depth 240mm, Height 410mm, Weight 11Kg

Storage/Shipping Requirements

Temperature: -20 to 70°C

Relative Humidity less than 93%

The atmosphere pressure: 70 to 106 kPa

Operating Requirements

Temperature: 5 to 40°C

Relative Humidity less than 80%

The atmosphere pressure: 70 to 106 kPa

Electrical Specifications

Input Voltage Requirements: AC Voltage 110V~240V; DC Voltage 12V

Inlet Battery: 12V, 2Ah (Can be used for 8 hours)

Frequency: 50Hz/60Hz

Power: 2A

Pneumatic Specifications

Pressurized Oxygen: 0.4MPa medical oxygen inlet or use 2L oxygen cylinder (Choice of suppliers)

Performance Specifications

Power: ON/OFF

Modes: CMV(IPPV), A/C(SIPPV), SIMV, SPONT, PEEP (Choice of suppliers)

Tidal Volume: 50~1200ml

Breath Rate: 5~60 bpm

PEEP: 0~2kPa

O2%: 45~90%

Sigh: 1~10 per 100 breath

Peep: 10-60hpa (Choice of suppliers)

Trigger Level: -10 ~ 0hpa

Over Pressure Relief: <6kpa

Alarms and Indicators

High Pressure Alarm Limit: 2~6kpa flash, red indicator

Low Pressure Alarm Limit: 0. 2~2kpa Red indicator

Alarm Silence: 120sec
