LAMSYSTEMS - Microbiological safety cabinet BMB-II-“Laminar-S”-0,9 Class II, type A2 (Model- SAVVY SL (power driven front sash)), Made in Germany

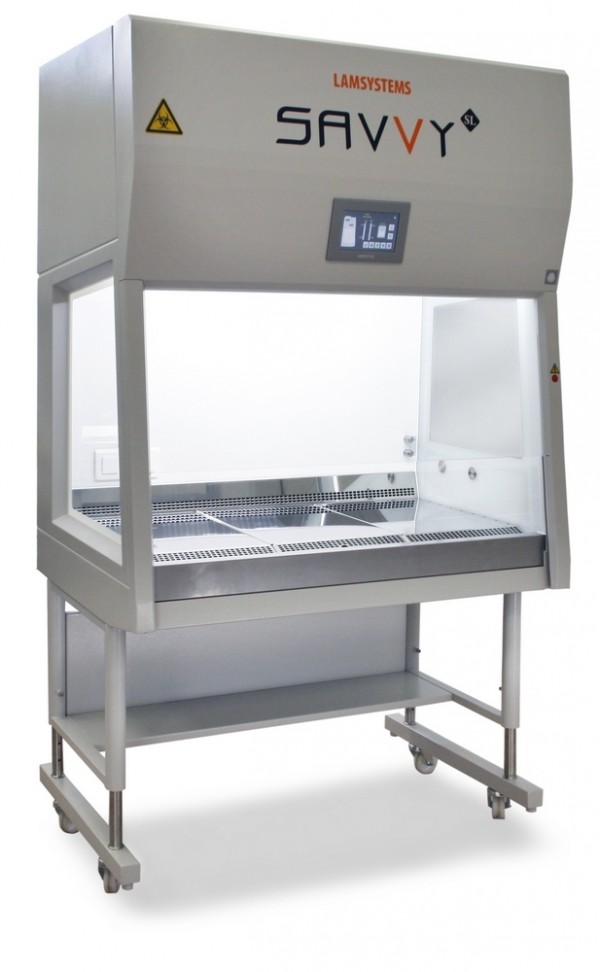

The biological safety cabinet Class II SAVVY^SL is designed for work with agents of biosafety levels I, II and III. It provides product, operator and environment protection.

Standard Configuration

 WorkChamber

• front sash made of laminated safety glass;
• side windows made of tempered glass: with tap ports on the right, solid on the left;
• slanted front surface of the cabinet;
• work chamber LED lighting;
• two electric sockets in the work chamber (in the left part of the rear wall);
• airflow laminarization screen made of polymer micromesh;
• air intake grille in the rear wall of the work chamber;
• three-section tabletop made of mirror stainless steel (AISI 304) with air intake grille in the front;
• work chamber tray made of stainless steel (AISI 304);
• removable armrest made of stainless steel (AISI 304)

Sash Lifting/Lowering

• the front aperture opening and closing is carried out by moving the front sash in the plane of the aperture;
• power drive;
• the sash is hanging on the two flat belts rigidly fixed to the glass;
• there is no counter-weight in the configuration.

UVUnit

• pullout (when inoperative, is stored outside of the work chamber under the tabletop);
• metal grille protecting the UV lamp;
• dampers against any impact upon lowering the work opening screen.

Supply and Exhaust Air Filtration System

• supply air coming into the work chamber is cleaned by supply HEPA filter H14;
• exhaust air coming out of the cabinet is cleaned by exhaust HEPA filter H14;
• three fans ensuring airflows inside the cabinet

Control System Components

• microprocessor control system;
• touchscreen control panel;
• airflow sensors;
• front sash and UV unit position sensors;
• belt tension sensors;
• individual fuse for power supply to the main functions of the cabinet (fan, lighting, UV lamp);
• individual fuse for electric sockets of the work chamber;
• built-in power cord

Testing Components

• built-in outlets for sampling the air upstream of HEPA filters for their integrity testing (located in the right part of the rear wall).

Stand

• frame stand with footrest;
• caster wheels for cabinet relocation;
• screw supports for cabinet fixation at operating site.
